HDBT RECEIVER
Model name: EXT-H101L2-RX-HDBTCOMPACT 18G HDMI 2.0 OVER HDBT RECEIVERThe EXT-H101L2-RX-HDBT is a fully 18G HDMI 2.0b compliant HDBaseT receiver. It receives HDMI audio, video as well as control up to 70m using a single Category 6A solid core cable (4K 60Hz 40m / 1080P 60Hz 70m) from a compatible HDBaseT transmitter. Supports HDMI 2.0b, HDR and HDCP 2.2.
The EXT-H101L2-RX-HDBT provides crystal clear HDR and full bandwidth 4K video in a compact formfactor. This receiver supports automatic downscaling from 4K to 1080P without refresh rate change for easier installation when mixing 4K and 1080P displays.
Support for bi-directional PoC allows for easy installation by applying power to either the transmitter or the receiver end.
Features:
- Compact formfactor
- Supports HDMI 2.0b, 4K@60 4:4:4, HDR, HDCP 2.2.
- 4K HDMI signal extension up to 40m, and 1080p is 70m.
- Supports 4K to 1080p auto downscaling.
- Supports CEC, IR, and RS232 pass-through.
- Supports bi-directional 24V PoC for simplified installations.
Specifications:
Model
Receiver
Input
HDBT IN
Output
HDMI OUT

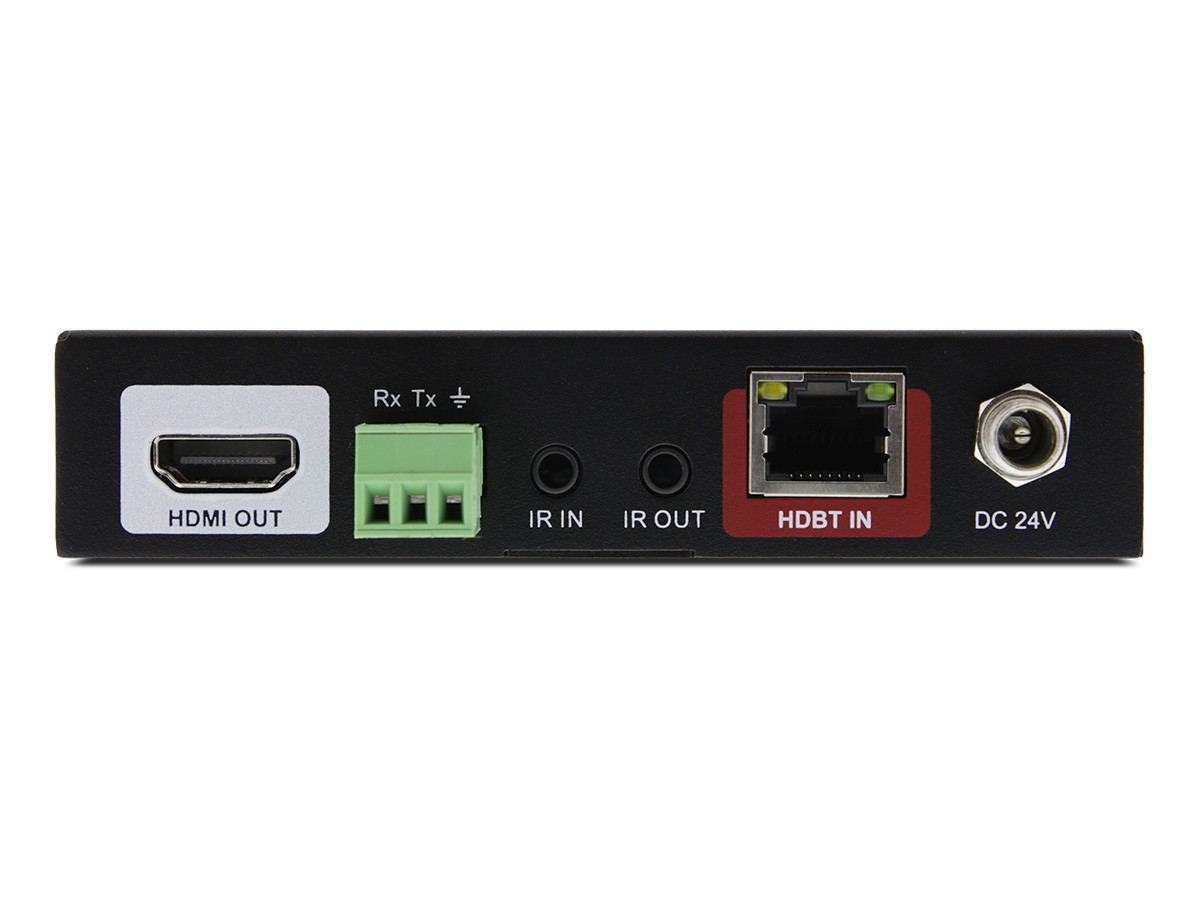

Control Ports
IR IN, IR OUT, RS232
General
Transmission Mode & Distance
HDBaseT；1080p ≦ 70m; 4Kx2K ≦ 40m
Resolution
Up to 4K@60Hz 4:4:4
Bandwidth
18Gbps
HDMI Standard
HDMI2.0b & HDCP2.2
Power Consumption
7W(Max)
Temperature
-10 ℃~ 50℃
Humidity
0% ~ 90%
Power supply
Input: 100VAC~240VAC, 50/60Hz; Output: 24VDC 1.25A
Dimension(W*H*D)
115mm x 84mm x 24mm
Net Weight(g)
235g
- Дополнительная информация
-
Дополнительная информация
Длина, см 0 Ширина, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Производитель TIGHT AV Код производителя EXT-H101L2-RX-HDBT Страна производства Штрих-код 570647013434 User's manual Download Gross weight, kg 0.4 Вес нетто, кг 0.235 Package Height, cm 8.4000 Package Width, cm 11.5000 Package Depth, cm 2.4000 Объем упаковки, м3 0 Комментарий для бизнес-клиентов #N/D - Отзывы
-
