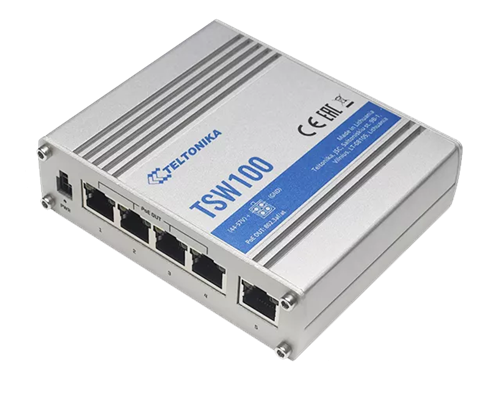

Teltonika TSW100, gray / TKA-TSW100

Teltonika TSW100, gray

The first industrial unmanaged switch from Teltonika Networks. The TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet (PoE) standards. This robust industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

• Robust aluminum
housing • Compact size with DIN rail as mounting option
• 4 x PoE ports with 802.3af and 802.3at support
• Plug-n-Play, no additional configuration required
• 5 x Gigabit Ethernet with speeds up to 1000 Mbps
• Total power budget on PSE up to 120 W, 60 W with standard package PSU

Dimensions: (WxDxH) 95 x 132 x 44 mm


Width    13.2 cm
Depth    9.5 cm
Energy consumption during operation    129 watts
Features    Auto-uplink (auto MDI / MDI-X), robust, aluminum housing
Interface    1 x 1000Base-T RJ-45 PoE
Interface    4 x 1000Base-T RJ-45
Height    4.4 cm
Jumbo Frame Support    9216 bytes
Capacity    Package buffer size: 128 KB
Humidity during operation    10 - 90% (non-condensed)
MAC Address Table Size    2K poster
Maximum temperature during operation    75 ° C
My operating temperature    -40 ° C
Model    Desktop model
Mains voltage    Direct current 7 - 58 V
PoE (Power Over Ethernet)    PoE
PoE budget    120 W
Ports    5 x 10/100/1000 (1 PoE)
Performance    Non-blocking bandwidth: 10 GB / s
Standards followed    IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Standards followed    Plug and Play, IP30
Status indicators    Power supply, status
Type of device    Switch - 5 ports - unmanaged
Subtype    Gigabit Ethernet
Weight    340 g
