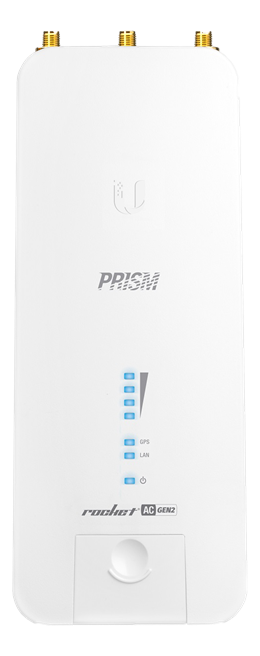

Ubiquiti rocket PRISM 5AC Gen2, GPS sync, 5GHz, airPrism, white RP-5AC-GEN2 / UBI-RP-5AC-GEN2

Ubiquiti rocket PRISM 5AC Gen2, Base Station with GPS sync, 5GHz, airPrism, white

Rocket Prism Access Point uses high performance airMAX ac and airPrism technologies for maximum performance for wireless networks. Rocket Prism AC integrates a separate Wi-Fi for fast and easy installation through your mobile device, it is also ESD-protected.

Rocket Prism AC supports GPS synchronization for faster, more scalable, carrier-class networks with up to 90% higher throughput than most of the solutions available on the market. Ubiquit's patented airPrism technology offers groundbreaking radio selectivity in unlicensed wireless bandwidth. airPrism technology isolates signals within the operation channel to increase capacity and throughput in co-location installations.

• Full-Band 5GHz
• 500+ Mbps (Max 800MHz)
• 1xRJ45 Gigabit
• AirPrism Technology
• Management Radio
• GPS Sync

Dimensions (WxDxH): 88x40x230mm
Weight: 400g

connectivity Technology    Wireless
Width    8.8 cm
Data Link Protocol    AirMax ac
Data Transfer Rate    500 Mbps
Depth    4 cm
Energy consumption during operation    9.5 watts
form factor    External
frequency Band    5 GHz
features    Routing, NAT support, VLAN support, Web server, WISP mode, Wi-Fi multimedia support, Quality of Service (QoS), Wireless bridge mode, 24KV ESD Protector, AirPrism technology
Interface    2 x antenna - RP-SMA
Interface    1 x 1000Base-T (PoE) - RJ-45
Height    23 cm
Included accessories    PoE injector
Installed processors    1 x Atheros MIPS 74KC
encryption Algorithm    AES, WPA2
Line Coding Format    64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Humidity during operation    5 - 95% (non-condensing)
Max number supported    1
Max temperature during operation    80 ° C
Included OS    AirOS
My operating temperature    -40 ° C
Network / Transport Protocol    TCP / IP, DHCP
Remote Administration Protocol    SNMP, Telnet, SSH, CLI
FRAME    128 MB DDR2 SDRAM
Robust design    Outside
Standards to be followed    IC, FCC, RoHS, ETSI 300 019
Status indicators    Power supply, single strength, LAN, GPS
Support for PoE (Power Over Ethernet)    PoE
Type of device    Wireless access point
Weight    400 g
