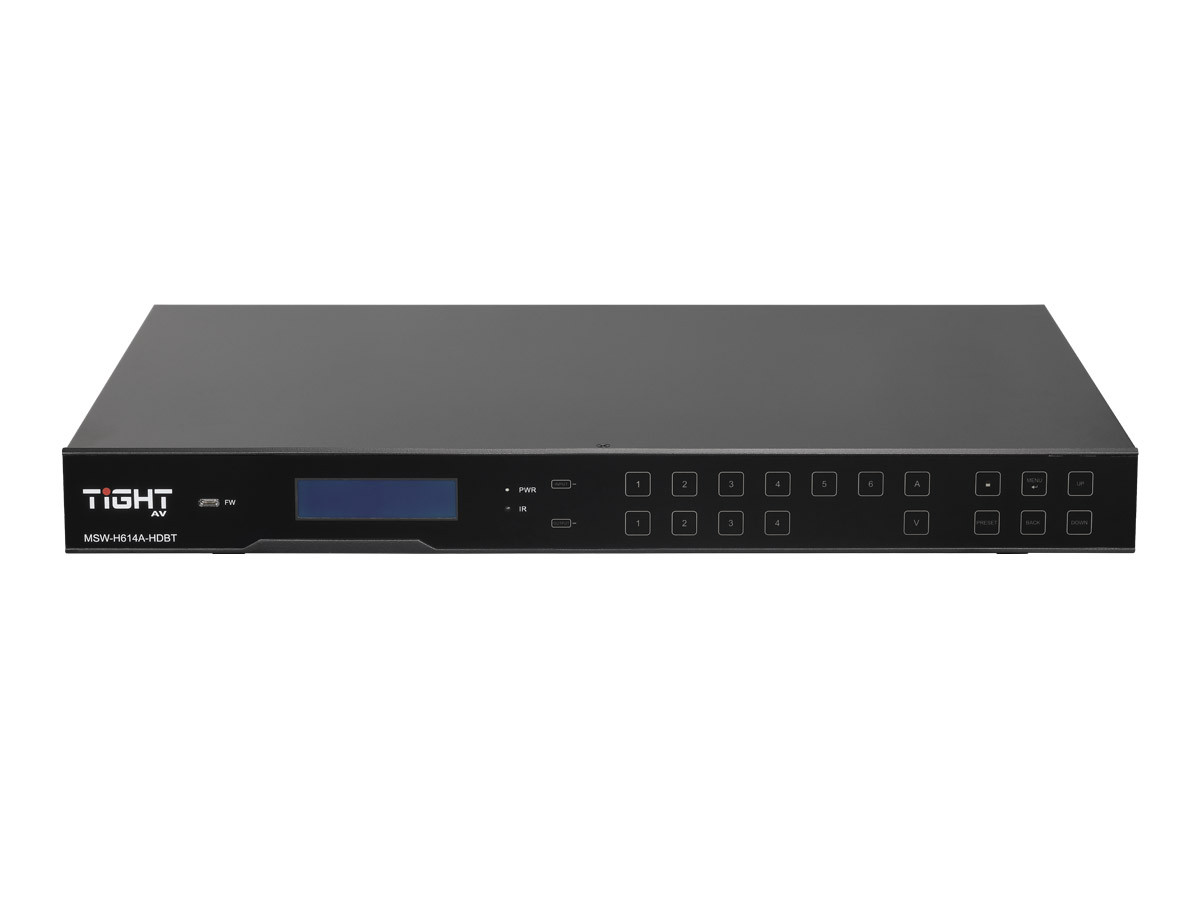

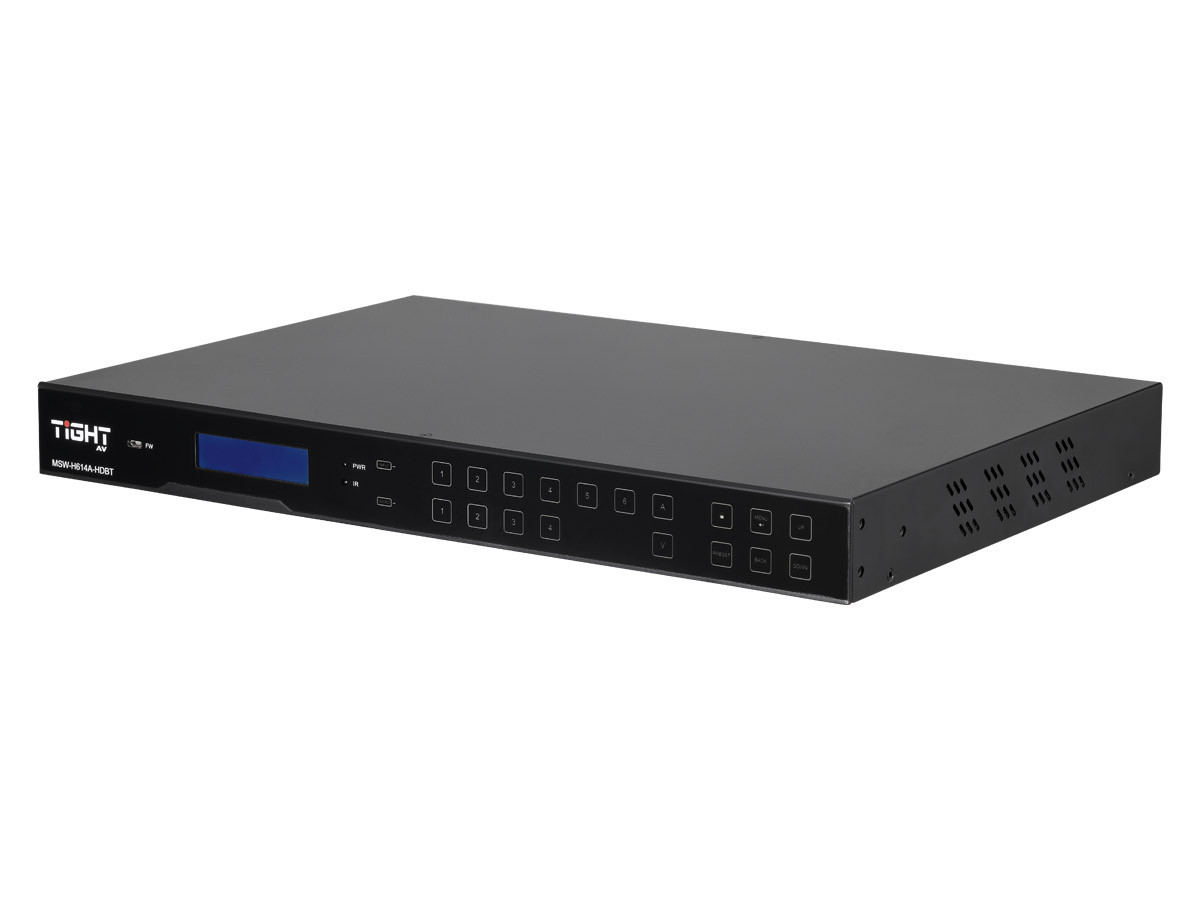

6X4+2 Matrix Switcher with HDBT

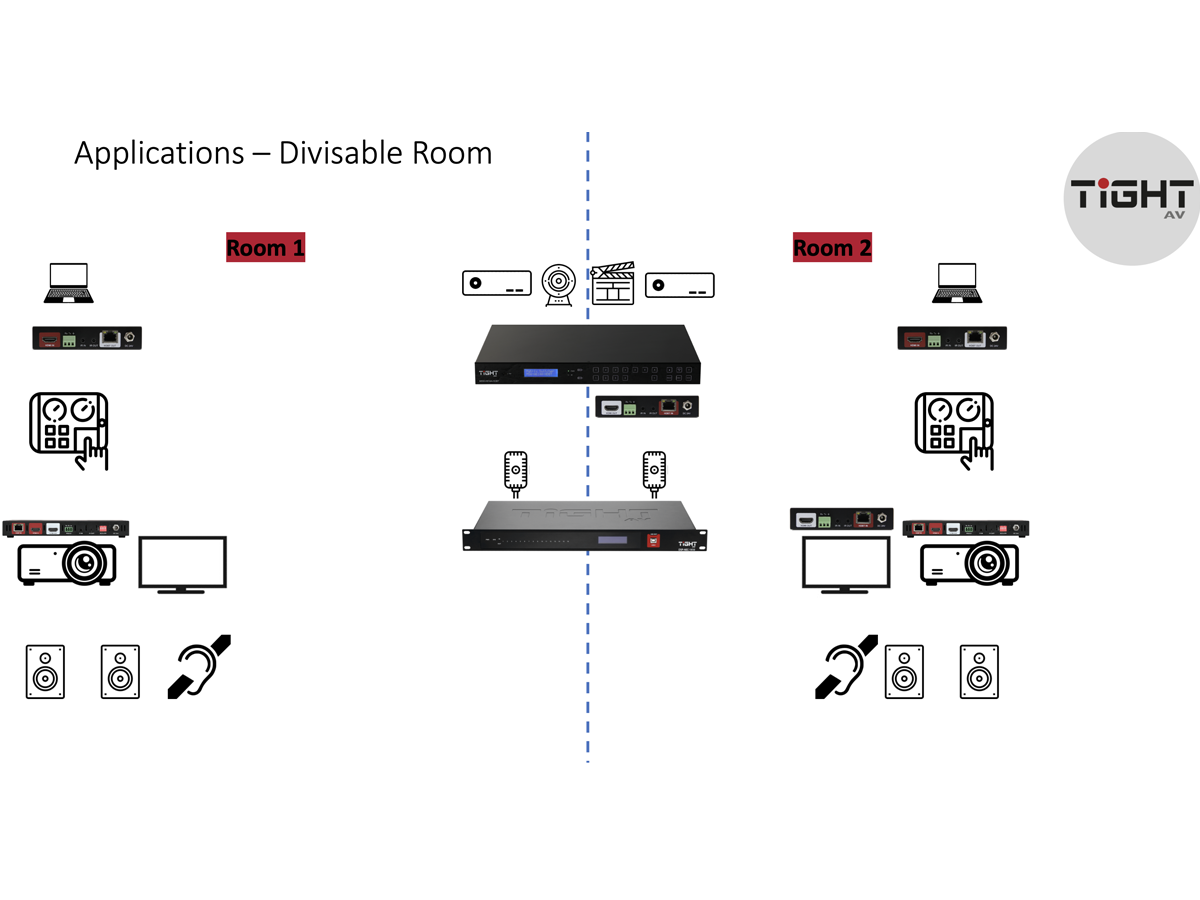

Model name: MSW-H614A-HDBT6x4+2 18GBPS HDMI 2.0 MATRIX SWITCHER WITH HDBTLooking for a cost-effective yet modern solution for your auditorium, lecture hall, worship hall, lobby, or corporate venue? Look no further than the MSW-H614A-HDBT!
This professional-grade 6x4+2 HDMI 2.0 and HDBaseT matrix switcher is designed to deliver optimal performance. Boasting a 2-input HDBaseT and four-input HDMI matrix with HDCP 2.3 and up to 4K60 4:4:4 video support, this matrix switcher is capable of transmitting 4K video up to 40 meters and 1080p video up to 70 meters over a single CAT6A cable.
In addition, the MSW-H614A-HDBT features four HDMI 2.0 with two mirrored simultaneous HDBaseT outputs which support 24V Power over Cable (PoC), enabling compatible TiGHT AV HDBaseT receivers to draw power from the matrix over the CAT6A cable. The matrix switcher is equipped with a 6x4 audio matrix that possesses de-embedding capabilities with individual volume, mute, and delay control per analog output channel.

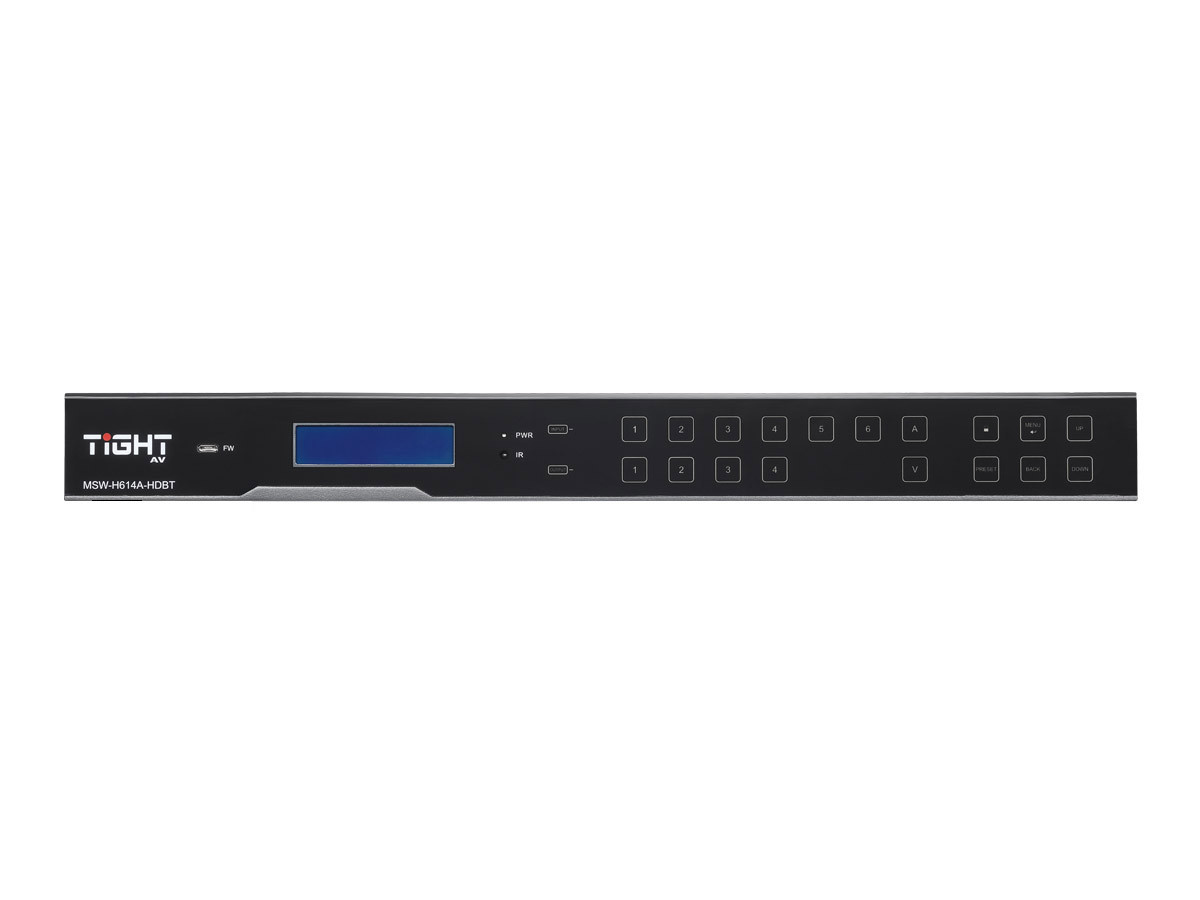

The matrix switcher features comprehensive EDID management and advanced HDCP handling to ensure maximum functionality with a wide range of video sources and displays. The matrix switcher also offers multiple control options by front panel, IR, RS232 commands, WEB UI and TCP/IP commands.Specifications:
Control port
(1) IR EYE, (1) RS232, (1) TCP/IP
Control Connector
(1) 3.5mm jacks, (1) 3-pin terminal blocks, (1) RJ45
GeneralExtension Transmission Mode
HDBaseT
Transmission Distance
1080p ≤ 230 feet (70 meters),
4K@60Hz ≤ 131 feet (40 meters)
Bandwidth
Up to 18Gbps
Operation Temperature
-5℃ ~ +55℃
Storage Temperature
-25℃ ~ +70℃
Relative Humidity
10% ~ 90%
Power Consumption
115W Max (Fully loaded and powering TX and RX)
External Power Supply
100V~240V AC, 50/60Hz
Dimension (W*H*D)
435mm x 43mm x 300mm
Net Weight
3.40kg
Shipping Dimension (W*H*D)
505mm x 140mm x 365mm
Shipping Weight
5.30kg
Compliance
FCC, CE
Environmental
RoHS, REACH, WEEE
Video
Video Input

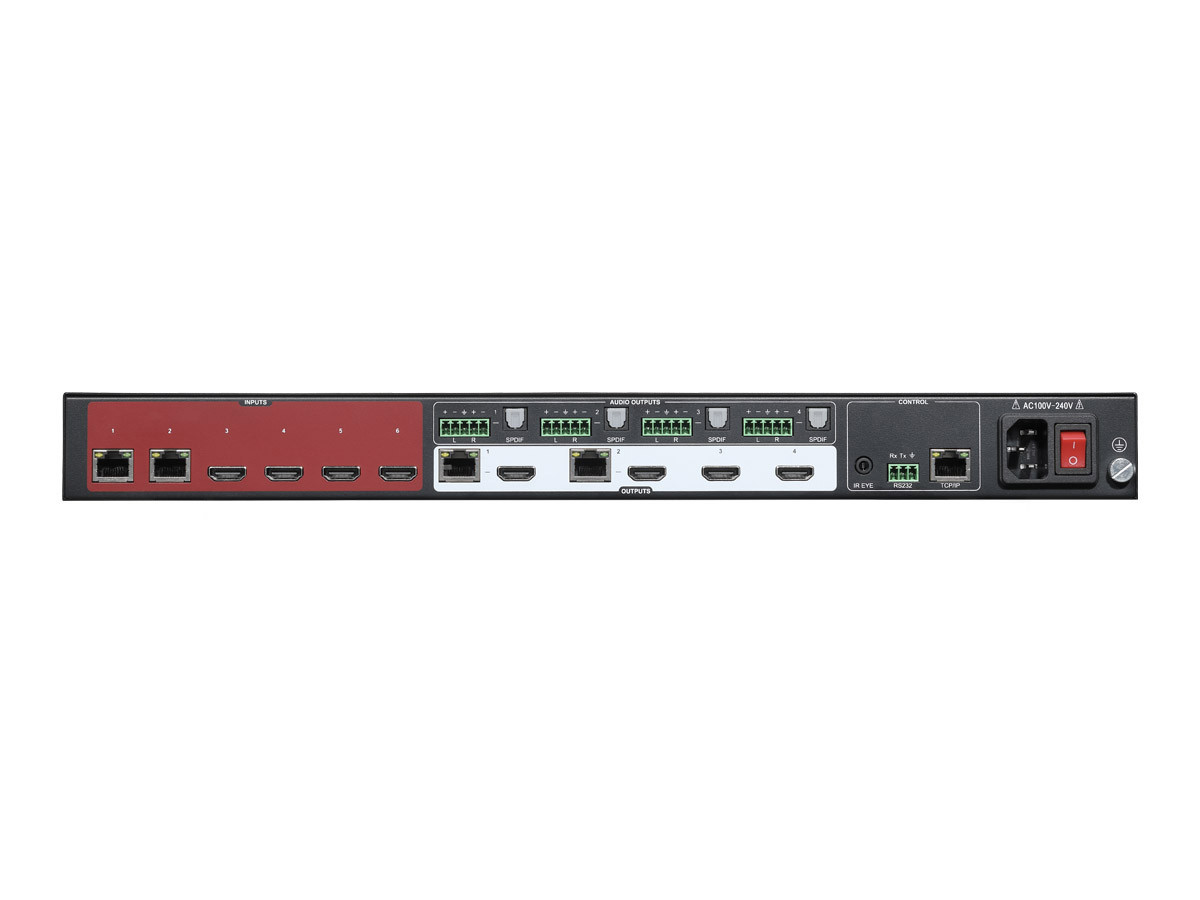

(4) HDMI, (2) HDBT
Input Connector
(4) Type-A female HDMI, (2) RJ45
HDMI Input Resolution
Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision
Video Output
(4) HDMI, (2) mirrored HDBT
Output Connector
(4) Type-A female HDMI, (2) RJ45
HDMI Output Resolution
Up to 4K@60Hz 4:4:4, HDR10, 1080p 3D.
Supports 4K to 1080p auto-downscaling.
HDBaseT Output Resolution
Up to 4K@60Hz 4:4:4 (using compatible receivers)
HDMI Standard
HDMI 2.0b
HDCP Version
HDCP 2.x/1.x
AudioHDMI Embedded Audio Format
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Audio Output
(4) Stereo analog L+R audio, (4) Digital SPDIF audio
Output Connector
(4) 5-pin terminal blocks, (4) Toslink connectors
Analog L+R Audio Format
Supports PCM
Digital SPDIF Audio Format
Supports PCM, Dolby Digital, DTS, DTS-HD
Local Audio Sampling Rate
Supports 44.1KHz, 48KHz, 96KHz
Frequency Response
20Hz – 20KHz, ±3dB
Audio Output Impedance
70Ω
Max Input Level
L+R: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal.
SPDIF:±0.05dBFS.
THD+N
< 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level).
SNR
L+R: > 80dB, 20Hz - 20KHz bandwidth.
SPDIF: > 90dB, 20Hz - 20 kHz bandwidth.
Crosstalk Isolation
SPDIF: < -120 dB, 10KHz sine at 0dBFS level (or max level before clipping).
L+R: < -60 dB, 10KHz sine at 0dBFS level (or max level before
clipping).
L-R Level Deviation
L+R: < 0.3dB, 1KHz sine at 0dBFS level (or max level before
clipping).
Frequency Response Deviation
< ± 0.5dB 20Hz - 20KHz.
Output Load Capability
L+R: 1KΩ and higher (Supports 10x paralleled 10KΩ loads).
Control - Дополнительная информация
-
Дополнительная информация
Длина, см 0 Ширина, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Производитель TIGHT AV Код производителя MSW-H614A-HDBT Страна производства Штрих-код 570647013438 User's manual Download Gross weight, kg 5.3 Вес нетто, кг 3.4 Package Height, cm 14.0000 Package Width, cm 50.5000 Package Depth, cm 36.5000 Объем упаковки, м3 0.0011 Комментарий для бизнес-клиентов #N/D - Отзывы
-
