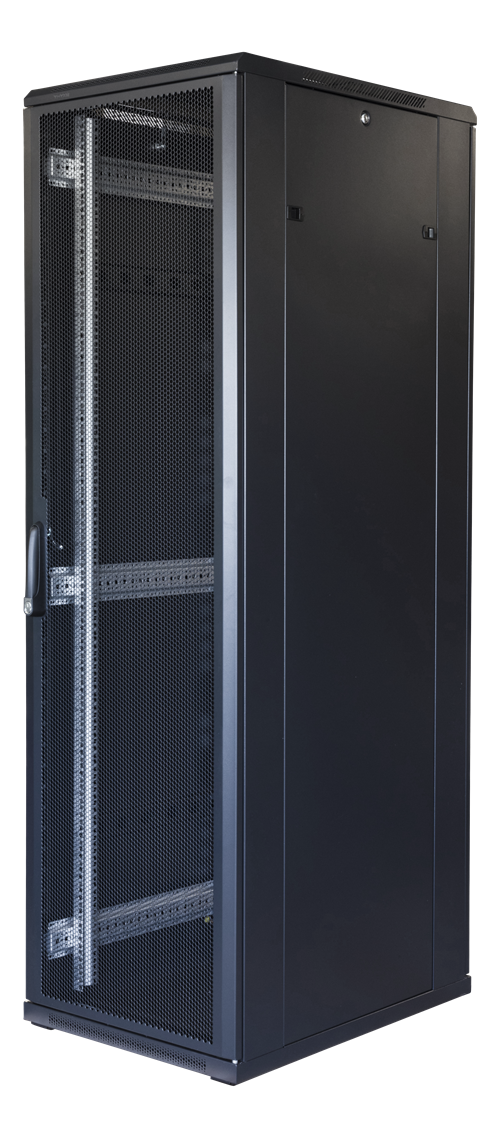

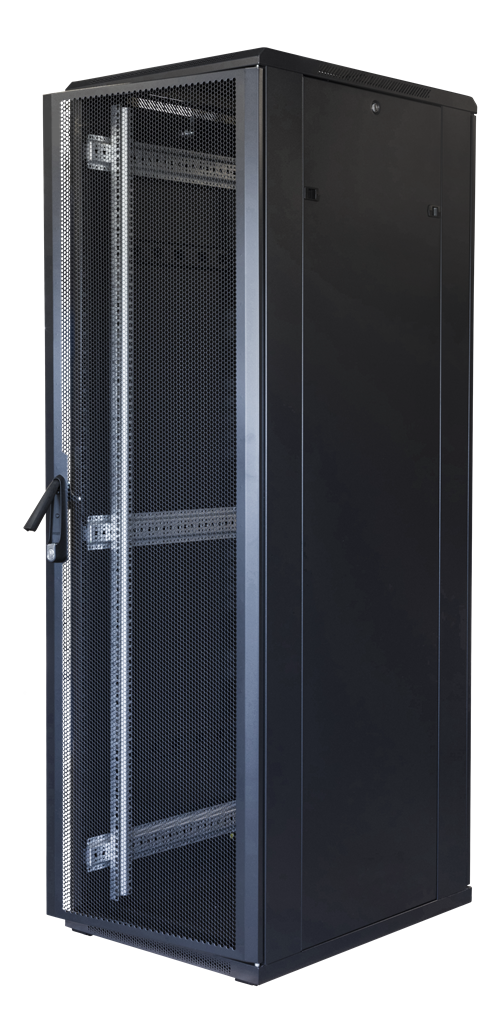

TOTEN System G, 19 "floor cabinet, 42U, 600x1200, perforated door front, perforated door rear, 800kg load, black
Machine-made cabinet where all parts are cut out with laser, punched with hydraulic turret punch and welded robot to achieve precision. All sharp edges are blown away for assembly and quality assurance according to ISO 9001.

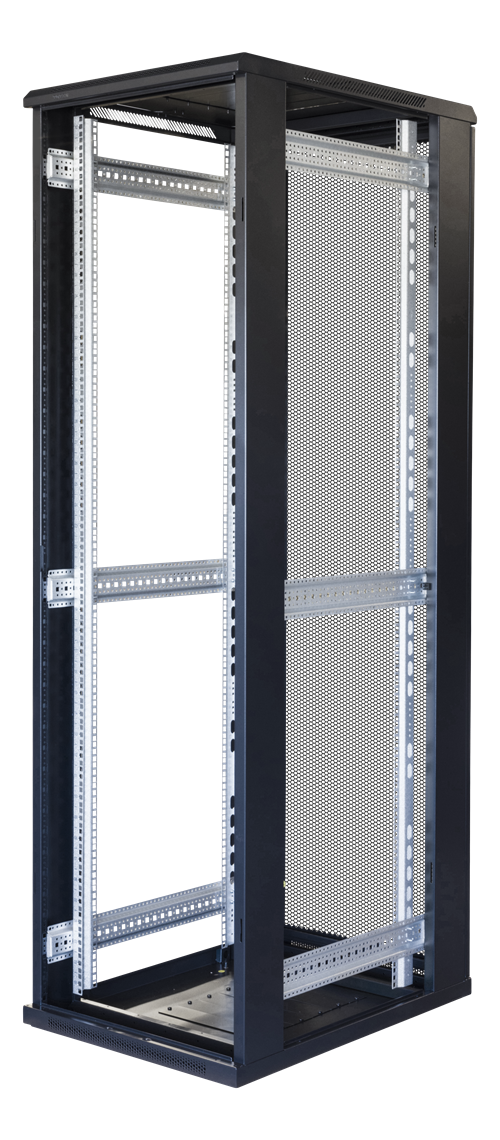

19 "units are mounted on four columns of a patented zinc alloy. A material that helps to counteract electrostatic damage, is highly resistant to repeated installations and has a dirt-resistant surface structure. The columns are adjustable front and back in 25-mm increments. additionally well-designed holes for cable entry and a clear unit marking that is visible even when the units are mounted.
The roof offers space for the TOTEN Modular Fan System with practical exterior mounting, providing a selectable cooling capacity
At the bottom there are step-wise openable cable glands for up to 1000 network cables as well as separate holes for power cables.
• A cabinet with options for both server and network equipment.
• Front door and rear door of perforated metal with 75% ventilation speed.
• Distributed loading capacity: 800kg (Static).
• Internal mounting width of 487mm.
• Mounting columns of 2mm zinc alloy.
• Outer cover of 1.2mm powder coated SPCC steel (RAL9004).
• Protection class: IP20.
• Dimensions (WxDxH): 600x1200x2055mm (42U).
All cabinets have right-handed front and rear doors with locks and removable and lockable side panels.
The cabinet comes bundled with feet and is ready for use in five minutes.
Wheels, basket nuts with screw, keys and mounting tools are included.
Always open the package and check that the cabinet is intact before writing on the shipping slip. Any freight damage must be noted / documented and promptly advertised to the shipper by the recipient.
Width 60 cm
Depth 120 cm
Characteristics Lockable front door, lockable rear door, ventilated, perforated rear door, perforated front door, IP20 protection, perforated door (75%)
Packaging dimensions (WxDxH) / weight 67 cm x 130 cm x 208.5 cm
finish Electrostatic pads, galvanized
Color Black, RAL 9004
Height 205.5 cm
Height (U-format) 42U
product Material Cold-rolled steel, zinc-aluminum alloy
Product rack
Stand Size 19 "
weight Limit 800 kg - Papildus informācija
-
Papildus informācija
Garums, cm 0 Platums, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Ražotājs TOTEN Ražotāja kods G3.6242.9801 Ražošanas valsts Svītrkods 733304803455 User's manual Download Gross weight, kg 20 Neto svars, kg 20 Package Height, cm 200.5000 Package Width, cm 68.0000 Package Depth, cm 132.0000 Iepakojuma tilpums, m3 1.7997 Komentārs biznesa klientiem #N/D - Apskati
-
