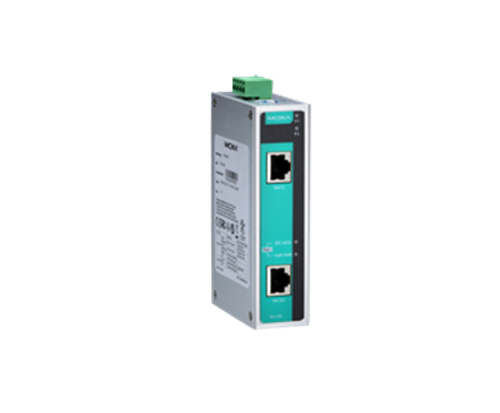

MOXA PoE Injector, Gigabit, 60W, 3kV
Width 3.03 cm
Depth 7.88 cm
Power Capacity 60 watts
Characteristics Metal casing, LED indicators, overvoltage protection, reverse polarity protection
Interface 1 x Gigabit LAN - RJ-45
Height 11.5 cm
Input Connections 2 x terminal block
Input voltage 24 / 48V
Input area DC 22 - 57 V
Contact details for power output 1 x RJ-45
Humidity during operation 5 - 95% (non-condensing)
Max temperature during operation 60 ° C
My operating temperature 0 ° C
MTBF (average time between errors) 2,407,739 hours
PoE (Power Over Ethernet) PoE + (IEEE 802.3at)
Service and support Limited warranty - 5 years
Standards to be followed IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, IP30 , EN 55022, EN 55024
Type of device Power supply - can be mounted on DIN rail
Weight 245 g - Papildus informācija
-
Papildus informācija
Garums, cm 0 Platums, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Ražotājs MOXA Ražotāja kods INJ-24A Ražošanas valsts Svītrkods 733304803044 User's manual Download Gross weight, kg 0.245 Neto svars, kg 0.24 Package Height, cm 4.0000 Package Width, cm 14.0000 Package Depth, cm 18.0000 Iepakojuma tilpums, m3 0.001 Komentārs biznesa klientiem #N/D - Apskati
-
