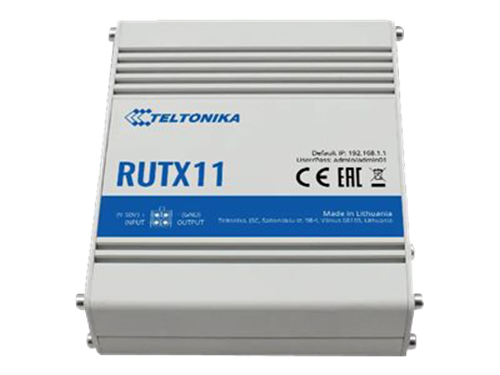

Teltonika RUTX11 - Wireless router - WWAN - 4-port switch - GigE, 802.11ac Wave 2 - Bluetooth 4.0, 802.11b / g / n / ac Wave 2 - DIN rail mountable / TKA-RUTX11

Teltonika RUTX11 - Wireless router - WWAN - 4-port switch - GigE, 802.11ac Wave 2 - Bluetooth 4.0, 802.11b / g / n / ac Wave 2 - DIN rail mountable


Connection technology    Wireless, wired
Number of antennas    6
Antenna    Externally detachable
Width    11.5 cm
Cellular protocol    WCDMA, HSUPA, LTE, DC-HSDPA
Data link protocol    Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2
Depth    9.5 cm
Energy consumption during operation    18 watts
Expansion card slots    2 (total) / 2 (free) x SIM
Flash memory    256 MB
Features    Firewall protection, NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI / MDI-X), IPv6 support, firmware can be updated, 2T2R MIMO technology, IPv4 support, SMS remote switch, MU-MIMO technology, Web Filtering, automated failover
Interface    Antenna: 3 x RP-SMA
Interface    Antenna: 3 x SMA
Interface    LAN: 3 x 10Base-T / 100Base-TX / 1000Base-T - RJ-45
Interface    USB: 1 x 4-pin USB type A
Interface    WAN / LAN: 1 x 10Base-T / 100Base-TX / 1000Base-T - RJ-45
Height    4.4 cm
Built-in units    LED panel, GPS
Included accessories    GPS antenna, 2 x WiFi antennas, 2 pcs. LTE antennas, Bluetooth antenna
Encryption algorithm    TLS, SSL 3.0
Humidity during operation    10 - 90% (non-condensed)
Maximum temperature during operation    75 ° C
Maximum transfer speed    300 Mbps
Supplied cables    1 x network cable - 1.5 m
Included Olympics    RutOS
My operating temperature    -40 ° C
Model    DIN rail mountable
Power supply    External power adapter
Network / transport protocol    TCP / IP, UDP / IP, NTP, ICMP / IP, IPSec, PPPoE, ARP, SMTP, DHCP, DNS
Network protocol    Static IP routing
Processor    1 x ARM Cortex-A7 717 MHz
Protocol for remote administration    SNMP, Telnet, HTTP, HTTPS, SSH, JSON-RPC, NTP
FRAME    256 MB DDR3 SDRAM
Standards followed    IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11ac Wave 2
Status indicators    Port status, power supply, signal strength, WAN, SIM status, Wi-Fi, mobile network type
Type    Wireless mobile modem
Type of device    Wireless router - 4-port switch (built-in)
Verification method    Secure Shell (SSH), X.509 certificate
Weight    465 g
