NB power source DELTACO 120W, 15-20V, 11 connectors, USB / SMP-120WD

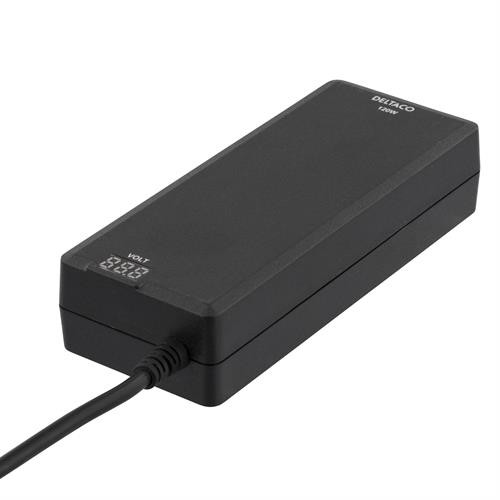

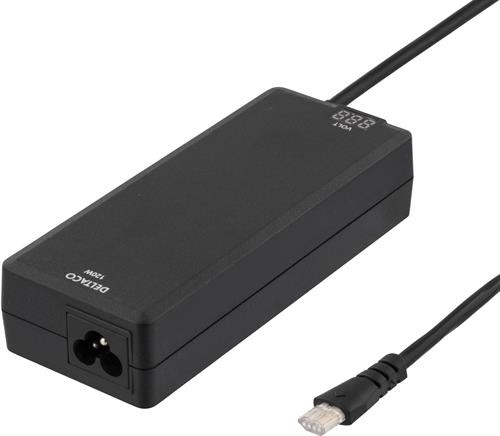

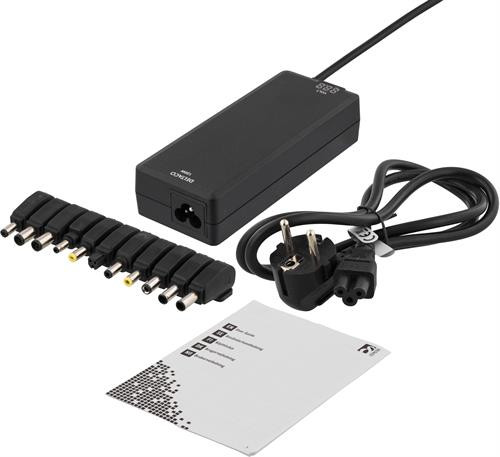

DELTACO charger for notebook, 15-20V, 6-8A, 120W , LED display , automatic voltage, various connectors, black

Charger for notebook with automatic voltage setting based on the plug you chose to connect. Current voltage is displayed on an LED display.

• Suitable for most models.

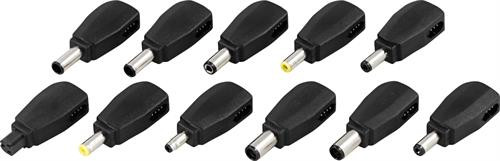

• Voltage-coded interchangeable tips.

Contact 1. Inner / outer diameter: 4.4 / 6.4mm. 16V / 7.5A
Contact 2. Inner / outer diameter: 4.4 / 6.4mm. 19.5V / 6.15A
Contact 3. Inner / outer diameter: 3 / 6.3mm. 15V / 8A
Contact 4. Inner / outer diameter: 2.5 / 5.5mm. 16V / 7.5A
Contact 5. Inner / outer diameter: 2.5 / 5.5mm. 18-19V / 6,66-6,31A
Contact 6. Width / Height: 3-pin (7.17 / 7.28mm). 20V / 6A
Contact 7. Inner / outer diameter: 1.7 / 5.5mm. 18-19V / 6.66-6.31A
Contact 8. Inner / outer diameter: 1.7 / 4.8mm. 18-19V / 6.66-6.31A
Contact 9. Inner / outer diameter: 5.0 / 7.4mm. 19.5V / 6.15A
Contact 10. Inner / outer diameter: 5 / 7.4mm. 18-19V / 6,66-6,31A
Contact 11. Inner / outer diameter: 2.1 / 5.5mm. 19.5V / 6.31A
Contact 12. Inner / outer diameter: 3.0 / 1.0mm. 19.3V / 6.3A
Contact 13. Inner / outer diameter: 11 / 4.6mm. 20V / 6A
Contact 14. Inner / outer diameter: 4.5 / 3.0mm. 19.5V / 6.15A

Dimensions (WxDxH): 55x140x30mm.
