- Description
-
Details
DELTACO fixed ultra-slim wall mount for TV / screen, 37-70 ", max 50kg, VESA 100x100-800x800, black / silver

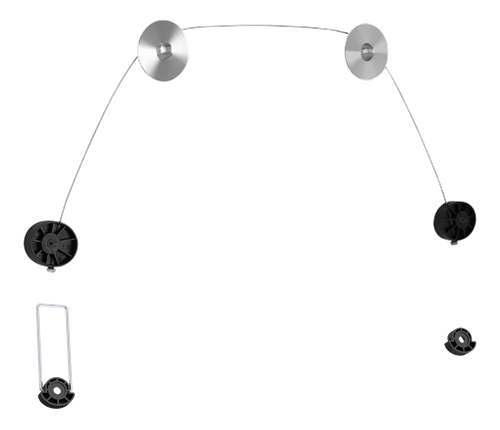

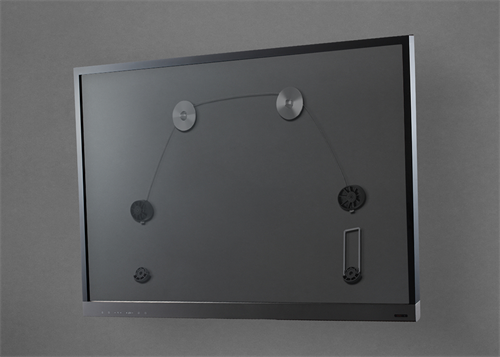

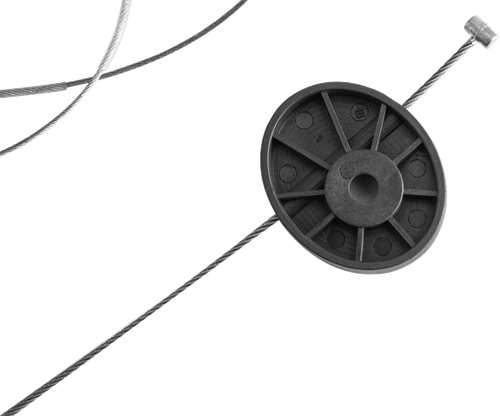

The wall bracket consists of two washers that are screwed onto the wall and 2 washers with steel wire that you attach to the screen you want up on the wall. It also comes with two spacers, one with a longer bracket that allows you to tilt the screen from the wall which facilitates installation of cables to the screen after it has been hung.
• For screens up to 70 "
• Maximum weight: 50kg
• Extends only 14.5mm from the wall

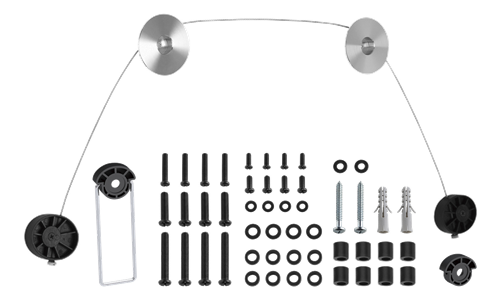

The package includes:
TV / Display screws: 4pcs M5x14, 4pcs M6x14, 4pcs M8x20, 4pcs M6x3 and 4pcs M8x30 Wall screws
: WA with associated plugs and washers.
Washers and spacers for all screws.
Wall bracket.
Design Ultra Slim Fixed
Package dimensions (WxDxH) / weight 23.5 cm x 5 cm x 16.5 cm / 560 g
Color Glossy gray
Contents of the package 4 x M5x14 screws, 4 x M6x14 screws, 4 x M8x20 screws, 4 x M8x30 screws, washers, wall brackets, gaskets, 4 x M6x3 screws
Material Plastic, aluminum, cold rolled steel, steel wire

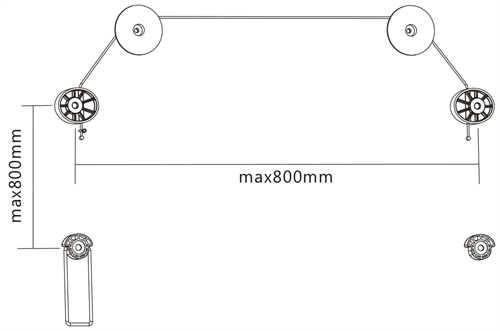

Maximum mounting pattern size 800 x 800 mm
Maximum load 50 kg
Recommended use TV / Monitor
Recommended TV size 37 "-70"
Service and support Limited warranty - 5 years
Type Wall mounting
VESA mounting interface 100 x 100 mm, 200 x 200 mm, 800 x 800 mm, 400 x 400 mm, 600 x 600 mm
Finishes Brushed aluminum anodic oxidation - Additional Information
-
Additional Information
Length, cm 0 Width, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Manufacturer DELTACO Manufacturer's code ARM-1104 Country of manufacture EAN code 733304804284 User's manual Download Gross weight, kg 5 Net weight, kg 4.2 Package Height, cm 5.0000 Package Width, cm 16.5000 Package Depth, cm 24.0000 Package volume, m3 0.002 Comment for B2B customer #N/D - Reviews
-
