MOXA NPort / MB3280

More Views

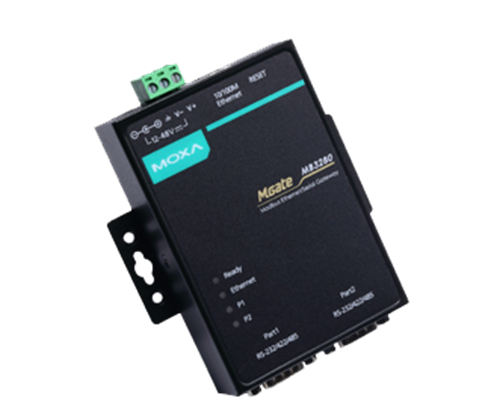

MOXA NPort / MB3280
€508.20

Qty: 0

MB3280
Description

Details

MOXA 2 Port Standard Serial to Ethernet Modbus Gateways, 16 TCP hosts, 32 questions per host

MB3180, MB3280 and MB3480 are standard Modbus gateways that convert between Modbus TCP and Modbus RTU / ASCII protocols. Up to 16 simultaneous Modbus TCP masters are supported, with up to 31 RTU / ASCII slaves per serial port. For RTU / ASCII masters, up to 32 TCP slaves are supported.

The MGate MB3000 gateways can effectively connect a high density of Modbus nodes to the same network. MB3280 can handle up to 62 serial slave codes, and MB3480 can handle up to 124 serial slave codes. Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baud rates, allowing both types of networks to be integrated with Modbus TCP via a Modbus gateway.

• Supports automatic router for easy configuration
• Supports path through TCP port or IP address for flexible deployment
• Convert between Modbus TCP and Modbus RTU / ASCII
• 1 Ethernet port and 2 RS-232/422/485 ports
• 16 simultaneous TCP masters with up to 32 simultaneous requests per master
• Easy installation and configuration of hardware

Additional Information

Additional Information

Length, cm 0
Width, cm 0
Height, cm 0
Energijos sąnaudų klasė #N/D
Manufacturer MOXA
Manufacturer's code MB3280
Country of manufacture
EAN code 733304803042
User's manual Download
Gross weight, kg 0.36
Net weight, kg 0.34
Package Height, cm 12.0000
Package Width, cm 20.0000
Package Depth, cm 26.0000
Package volume, m3 0.0062
Comment for B2B customer #N/D
