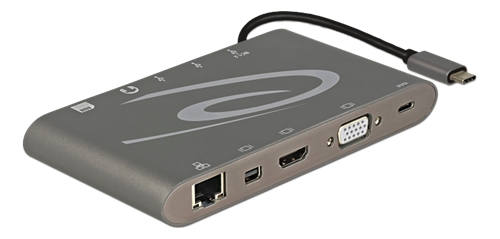

DeLOCK USB-C 3.1 Docking station, 3840x2160 in 30Hz, space gray

This dock from Delock can be connected to a computer with a USB-C Alt mode or Thunderbolt 3 port and provides a variety of interfaces. Two monitors can be used simultaneously with mini Displayport and HDMI outputs, or a single monitor with VGA output. Three built-in USB Type-A ports enable the use of peripherals and connections for a headset and gigabit network, as well as an SD / micro SD card reader. With a USB-C power supply, laptops such as Macbook or Chromebook is charged during use.

Note The
Splitter is a so-called Multi-Stream-Transport (MST) hub and supports extended desktop mode for Displayport 1.2 graphics cards. The splitter will display the same image (mirror) on both outputs when using a graphics card with Displayport 1.1 or Mac OS.

Specifications
• Connection:
  front:
  1 x Gigabit LAN 10/100/1000 Mb / s RJ45, female
  1 x mini Displayport 20-pin, female
  1 x HDMI-A 19-pin, female
  1 x VGA 15-pin female connector
  1 x USB -C, female (power supply)
  back:

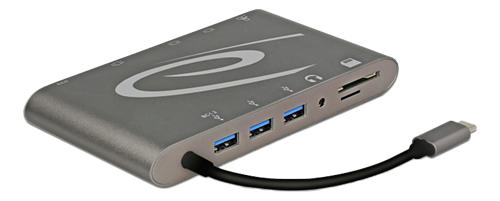

  3 x USB 3.0 Type-A, female
  1 x Headset 3.5 mm 4-pin connector
  1 x SD / SDHC / SDXC / MMC card slot
  1 x Micro SD / SDHC / SDXC card slot
  1 x USB-C, male
• The HDMI and Displayport ports support: extended and mirroring,
  resolution up to 2560 x 1440 in 60 Hz or 3840 x 2160 in 30 Hz
  (depending on the system and connected hardware)
• VGA resolution up to 1920 x 1080 and 60 Hz
• Transmit audio and video signals
• Output power: max. 10 W total,
  1 x USB Type-A female max. 7.5 W,
  2 x USB Typ-A hona max. 5 W (combined)
• Input power: 1 x USB-C female max. 60 W
• Metal chassis
• Rubber feet for secure grip and stable stand
• Cable length incl. contact: approx. 18 cm
• Color: dark gray
• Dimensions (LxWxH): approx. 13.7 x 7.5 x 1.7 cm

System requirements
• Windows 8.1 / 8.1-64 / 10 / 10-64, Windows 10 Mobile, Android ex 6.0, Mac OS ex 10.9
• Device with a free USB Type-C port and alternatively Displayport mode
  or with a free Thunderbolt ™ 3 -port

Package Contents
• USB-C Dock
• User Manual

Package
• Retail Box

Additional Information

Additional Information

Length, cm 0
Width, cm 0
Height, cm 0
Energijos sąnaudų klasė #N/D
Manufacturer DE-LOCK
Manufacturer's code 87297
Country of manufacture
EAN code 404361987297
User's manual Download
Gross weight, kg 0.24
Net weight, kg 0.2
Package Height, cm 0.0000
Package Width, cm 0.0000
Package Depth, cm 0.0000
Package volume, m3 0
Comment for B2B customer #N/D
