Shuttle WLN-P WLAN kit, 802.11b / g / n / ac, Mini-PCIe Half-Size, incl. cables and antennas, 2.4 / 5GHz, 580Mbps, Bluetooth 4.0 POZ-WLNP01 / WLN-P

Shuttle WLN-P WLAN kit, 802.11b / g / n / ac, Mini-PCIe Half-Size, incl. cables and antennas, 2.4 / 5GHz, 580Mbps, Bluetooth 4.0

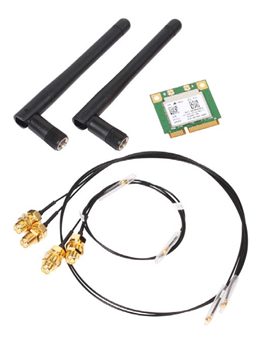

Mini-PCIe Half-Size Network Card for Shuttle Computers. In addition to the network card, there are also two external antennas (RP-SMA) and two antenna cables of 0.2m each.

• 802.11b / g / n / ac
• Chipset: Realtek RTL8821AE
• Bluetooth 4.0
• For: SX79R5, SZ77R5, SZ68R5, SH67H3, SH67H7, SH61R4, SH87R6, SZ87R6, SH81R4, SH97R6, SH170R6, SZ170R8

Network cards, antenna cables, antennas, manuals and drivers are included in the package.

Accessories
Related Products
Substitute


connectivity Technology    Wireless
Number of antennas    2
Antenna    External removable
Data Link Protocol    802.11b, 802.11g, 802.11n, Bluetooth 4.0, 802.11ac
form factor    Plug-in card
frequency Band    2.4 GHz, 5 GHz
features    WPA2 encryption, WPA encryption
Interface type (bus)    PCI Express Half Mini Card
encryption Algorithm    AES, WPA, WPA2
Maximum temperature during operation    70 ° C
Supplied cables    1 x antenna cable (internal) - 21 cm
Supplied cables    1 x antenna cable (internal) - 29 cm
Supplied cables    2 x antenna cable (internal) - 53 cm
Included software    Drivers and Utilities
My temperature during operation    0 ° C
Operating system required    Linux, Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bit), Windows 10 (32/64 bits)
processor    1 x RTL8821AE - Realtek Semiconductor
Standards that are followed    AES
Standards that are followed    IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
Type of device    network adapter
