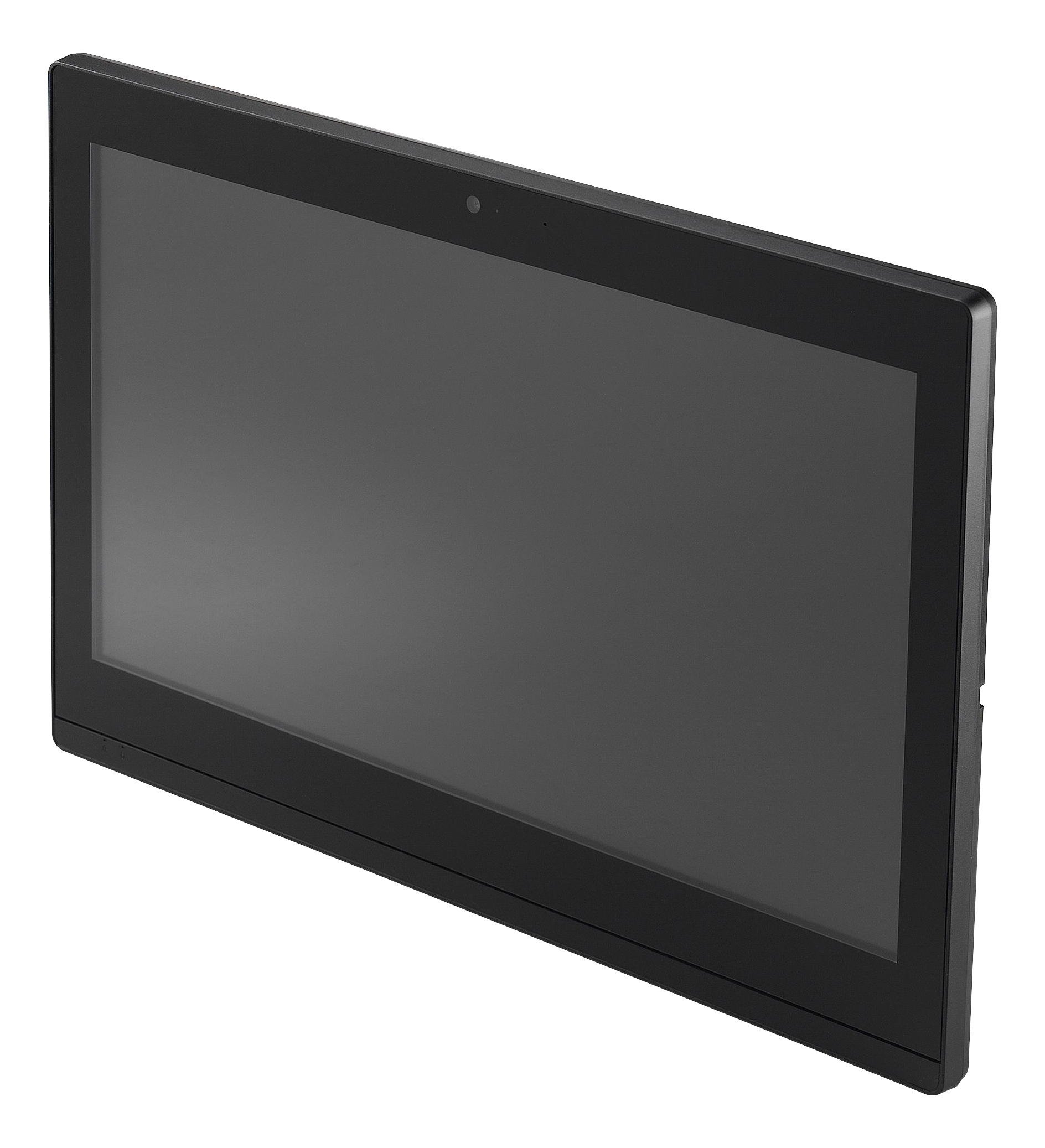

All-In-One PC Shuttle XPC Barebone, for POS, POI, 19,5", multi-touch, i3-7100U, black / PAB-P90U301 / P90U3-B

More Views

All-In-One PC Shuttle XPC Barebone, for POS, POI, 19,5", multi-touch, i3-7100U, black / PAB-P90U301 / P90U3-B
€980.46

Qty: 0

All-In-One PC Shuttle XPC Barebone, for POS, POI, 19,5", multi-touch, i3-7100U, black / PAB-P90U301 / P90U3-B
Description

Details

Product description

Shuttle 19.5" All-In-One PC for POS, POI and Kiosk Applications, black

With the XPC all-in-one P90U3 Shuttle expands its product range of All-in-One PCs and introduces its largest model so far. It is the first one in a 19.5 inch format and with a capacitive touchscreen. An Intel UltraLow-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water

• Fanless and quiet
• Protection Class IP54
• 24/7 nonstop operation
• Power on after Power fail
• Optimised Cable Management
• Connects to two external Full HD displays
• All applications at your fingertips – 10-point multi-touch

Dimensions:(WxDxH) 487x44xx321 mm

Weight: 4.29 Kg

Specification

Number of CPUs 1
Number of channels 1
Number of cores Double-core
Image ratio 16: 9
Monitor type LED
Widescreen display Yes
Width 48.7 cm
Cache / processor 3 MB
CPU Intel Core i3 7th gen. 7100U / 2.4 GHz
Data link protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.1
Diagonal size 19.5 "
Depth 4.4 cm
Effect 65 Watt
Characteristics Unbuffered, dual channel memory architecture
The weight of the packaging 5.62 kg
ENERGY STAR certified Yes
ENERGY STAR version 7.0
Ethernet controller Intel I211
Compartment 1 (total) / 1 (free) x internal 2.5 "
Supported flash memory cards SD memory card, SDHC memory card, SDXC memory card
Form factor SO DIMM 260-pin
Form factor for product All in one
Features Wake on LAN (WoL), PXE support
Color Black
Graphics processor Intel HD Graphics 620
Interface 1 x HDMI
Interface 1 x LAN (Gigabit Ethernet)
Interface 1 x audio output / headphones
Interface 1 x microphone
Interface 1 x USB 2.0 (1 internal)
Interface 1 x VGA
Interface 2 x USB 3.0
Interface 4 x USB 2.0
Height 32.1 cm
Speakers included 2 x right / left channel
Installed size 0 GB / 32 GB (max)
Installed size L3 cache - 3 MB
Camera Yes
Card slots 1 (total) / 0 (free) x M.2 Card - 2230 (Key AE)
Card slots 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key BM)
Card slots 2 (Total) / 2 (empty)
Audio output mode Stereo
Humidity during operation 10 - 90%
Maximum temperature during operation 40 ° C
Max. CPU number 1
Included Olympics No operating system
My operating temperature 0 ° C
Software Drivers and Utilities
Mains voltage AC 120/230 V (50/60 Hz)
Touch screen Yes (10-point multi-touch)
Service and support Limited warranty - 2 years - return
Standards followed VCCI, CB, FCC, RoHS, ETL, IP54, EMI, RCM, EMC 2014/30 / EU, LVD 2014/35 / EU, Energy-Related Products (ErP) Lot 3, RED, RED 2014/53 / EU, ErP 2009/125 / EU
Power efficiency Ultra Low Voltage (ULV)
Wireless LAN support Yes
Theft / burglary protection Location for security locks (cable locks sold separately)
Technique DDR4 SDRAM - not ECC
Wireless NIC Realtek RTL8821AE
Type 1 x SATA
Type No HDD
Type No optical drive
Type Card reader
Type Microphone
Type PC barebone
Type of device Power adapter
Type of control interface SATA 6Gb / s
Type of security location Kensington security location
Resolution 1920 x 1080
Original resolution 1600 x 900 (HD +)
VESA mounting interface 100 x 100 mm
Video interface VGA, HDMI
Weight 4.29 kg

Info / Certificate

Datasheet:
Additional Information

Additional Information

Length, cm 0
Width, cm 0
Height, cm 0
Energijos sąnaudų klasė #N/D
Manufacturer SHUTTLE
Manufacturer's code P90U3-B
Country of manufacture
EAN code 887993001685
User's manual Download
Gross weight, kg 5.62
Net weight, kg 5.2
Package Height, cm 0.0000
Package Width, cm 0.0000
Package Depth, cm 0.0000
Package volume, m3 0
Comment for B2B customer #N/D
