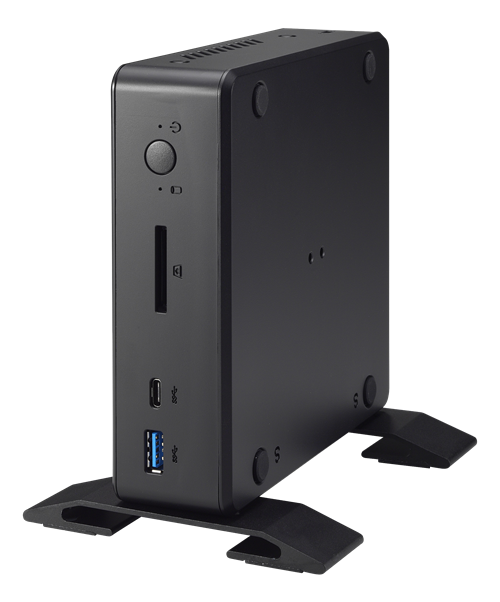

Shuttle NC03U XPC Nano, Intel Celeron 3865U 1.6 GHz Dual core, Intel HD610 Graphics, USB-C, HDMI 1.4, DisplayPort 1.2, black PFB-NC03U001 / NC03U

Shuttle NC03U XPC Nano, Intel Celeron 3865U 1.6GHz Dual Core, Intel HD610 Graphics, USB-C, HDMI 1.4, DisplayPort 1.2, Black

The NC03U series is powered by Intel's energy-saving ultra low voltage (ULV) processors by the Kaby Lake generation. Compared to the NC02U series, it provides higher clock frequencies, improved graphics performance, and support for faster DDR4 memory, up to 2x16 GB. Furthermore, a 2.5-inch unit up to 15 mm in height and an M.2-2280 NVMe SSD card can be installed. The DisplayPort connector provides video resolutions up to 4K @ 60fps while an additional monitor can be connected via HDMI. USB peripherals use either Type A or Type C ports. Professional users will appreciate Intel Gigabit LAN and a serial port specifying the purposes for which the NC03U series is primarily intended: Digital Signage, POS, Control, Office or even multimedia.

• Intel Celeron 3865U 1.6GHz Dual Core
• Intel HD610 Graphics
• M.2 2280 Location
• Up to 2x16GB DDR4

Dimensions (WxDxH): 142x142x42mm

Number of CPUs    1
Number of cores    dual
Display Type    No.
Width    14.2 cm
Cache / processor    2 MB
CPU    Intel Celeron 3865U / 1.8GHz
Data Link Protocol    Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Depth    14.2 cm
Effect    65 Watts
Characteristics    Not buffered, dual channel memory architecture
ENERGY STAR certified    Yes
Ethernet controller    Intel I211
Compartment    1 (total) / 1 (free) x internal 2.5 "
Supported flash memory cards    SD memory card, SDHC memory card, SDXC memory card
form factor    SO DIMM 260 pin
Form factor for product    Mini PC
features    Wake on LAN (WoL), PXE support
Color    Black
graphics Processor    Intel HD Graphics 610
Interface    1 x USB 3.0 - Type A (1 on the front)
Interface    1 x headphone / microphone - mini jack
Interface    1 x LAN (Gigabit Ethernet)
Interface    1 x DisplayPort
Interface    1 x HDMI
Interface    1 x USB-C 3.0 (1 on the front)
Interface    2 x USB 2.0
Interface    1 x serial
Height    4.2 cm
Included accessories    Horizontal feet, VESA mounting kit, 2.5 inch HDD mount
Installed size    0 GB / 32 GB (max)
Installed size    L3 cache - 2 MB
slots    1 (total) / 0 (free) x M.2 card - 2230
slots    1 (total) / 1 (free) x M.2 card - 2280/2260/2242
slots    2 (total) / 2 (free) x SO-DIMM 260 pins
sound Output    Stereo
Operating humidity    10 - 90% (non-condensed)
Maximum number of monitors supported    2
Maximum temperature during operation    40 ° C
Max. CPU number    1
Included OS    No operating system
My operating temperature    0 ° C
Software    Drivers and Utilities
mounting Interface    100 x 100 mm, 75 x 75 mm
Rated voltage    AC 120/230 V (50/60 Hz)
Standards that are followed    HD audio
Standards that are followed    IEEE 802.11i, IEEE 802.3az, IEEE 802.11x
Standards that are followed    VCCI, BSMI, CB, CCC, FCC, R & TTE, RoHS, ETL, ErP Ready, EMI, RCM, EMC 2004/108 / EC, LVD 2006/95 / EC, ErP 2009/125 / EC, R & TTE Directive 1999/5 / EC
power Efficiency    Ultra Low Voltage (ULV)
Support for Wireless LAN    Yes
Theft / burglary    Security lock slot (cable lock sold separately)
Technique    DDR4 SDRAM
Wireless NIC    Realtek RTL8188EE
Type    1 x SATA
Type    No HDD
Type    Card reader
Type    PC barebone
Type of device    power adapter
Type of control interface    SATA 6Gb / s
video Interface    HDMI, DisplayPort
Weight    400 g
