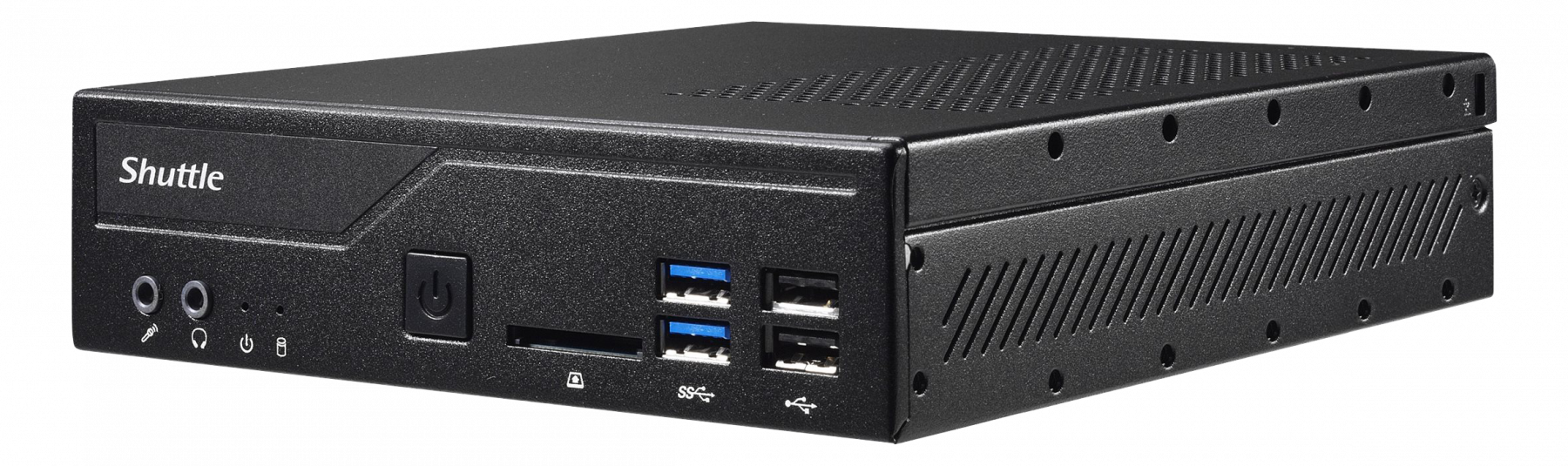

Slim PC Shuttle DH410 Barebone, LGA1200 socket, Intel H410, black / PIB-DH410001 / SHUT-169

More Views

Slim PC Shuttle DH410 Barebone, LGA1200 socket, Intel H410, black / PIB-DH410001 / SHUT-169
€322.83

Qty: 0

Slim PC Shuttle DH410 Barebone, LGA1200 socket, Intel H410, black / PIB-DH410001 / SHUT-169
Description

Details

Product description

Shuttle XPC slim DH410 - Barebone - Slim-PC - LGA1200 Socket - Intel H410 - no CPU - RAM 0 GB - GigE

Specification

Number of channels 1
Monitor type No.
Width 19 cm
CPU No CPU
CPU card slot LGA1200 socket
CPU upgradeability Upgradable
Data link protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Depth 16.5 cm
Effect 90 watts
Characteristics Unbuffered, dual channel memory architecture
The weight of the packaging 2.1 kg
ENERGY STAR certified Yes
Ethernet ports 2 x Gigabit Ethernet
Ethernet controller 2 x Intel I210-AT
Compartment 1 (total) / 1 (free) x internal 2.5 "
Supported flash memory cards SD Memory Card, SDHC Memory Card, SDXC Memory Card, SDHC UHS-I Memory Card, SDXC UHS-I Memory Card
Form factor SO DIMM 260-pin
Form factor for product Slim-PC
Features Wake on LAN (WoL), PXE support, Teaming support
Color Black
Graphics processor No graphics

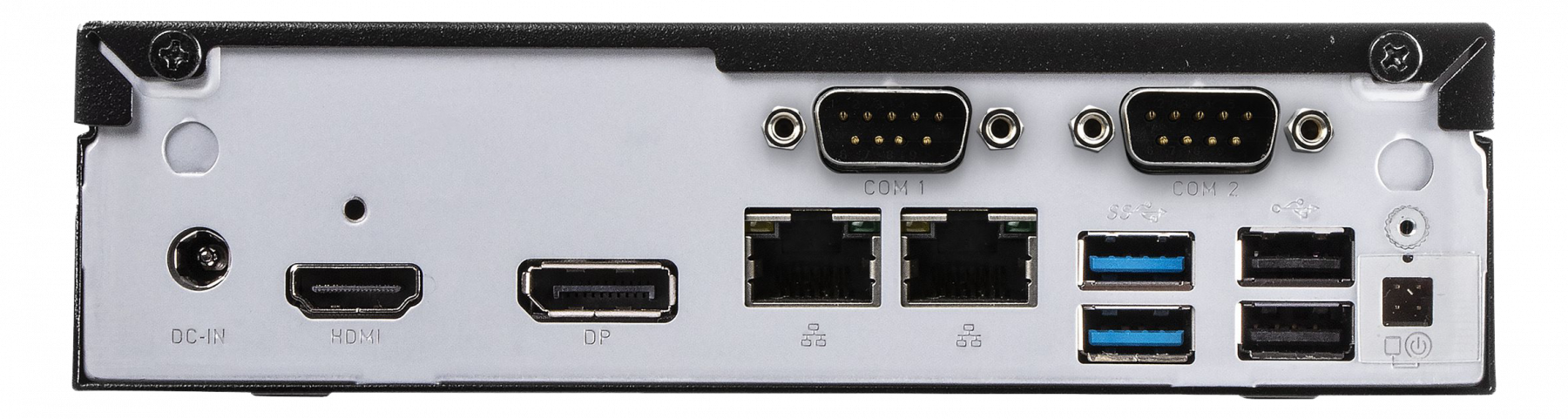

Interface 1 x DisplayPort
Interface 1 x HDMI
Interface 1 x audio output / headphones (1 on the front)
Interface 1 x microphone (1 on the front)
Interface 2 x LAN (Gigabit Ethernet)
Interface 2 x serial
Interface 4 x USB 2.0 (2 on the front, 2 on the back)
Interface 4 x USB 3.2 Gen 1 (2 on the front, 2 on the back)
Height 4.3 cm
Included accessories VESA mounting kit
Installed size 0 GB / 64 GB (max)
Card slots 1 (total) / 1 (free) x M.2 Card - 2230 (for remote module)
Card slots 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280
Card slots 2 (Total) / 2 (empty)
Circuit type Intel H410
Audio output mode Stereo
Humidity during operation 10 - 90% (non-condensed)
Maximum temperature during operation 50 ° C
Max. CPU number 1
Supplied cables Serial ATA cable
Included Olympics No operating system
My operating temperature 0 ° C
Software Drivers and Utilities
Mains voltage AC 120/230 V (50/60 Hz)
Standards followed VCCI, BSMI, CB, FCC, RoHS, ETL, ErP Ready, EMI, RCM, EMC 2004/108 / EC, LVD 2006/95 / EC, ErP 2009/125 / EC, DisplayPort 1.2
Theft / burglary protection Location for security locks (cable locks sold separately)
Technique DDR4 SDRAM - not ECC
Type 1 x SATA
Type No HDD
Type No optical drive
Type Card reader
Type PC barebone
Type of device Power adapter
Type of control interface SATA 6Gb / s
Type of security location Kensington security location
VESA mounting interface 100 x 100 mm, 75 x 75 mm
Weight 1.3 kg
Additional Information

Additional Information

Length, cm 0
Width, cm 0
Height, cm 0
Energijos sąnaudų klasė #N/D
Manufacturer SHUTTLE
Manufacturer's code PIB-DH410001
Country of manufacture
EAN code 887993002385
User's manual Download
Gross weight, kg 4.46
Net weight, kg 4.23
Package Height, cm 0.0000
Package Width, cm 0.0000
Package Depth, cm 0.0000
Package volume, m3 0
Comment for B2B customer #N/D
