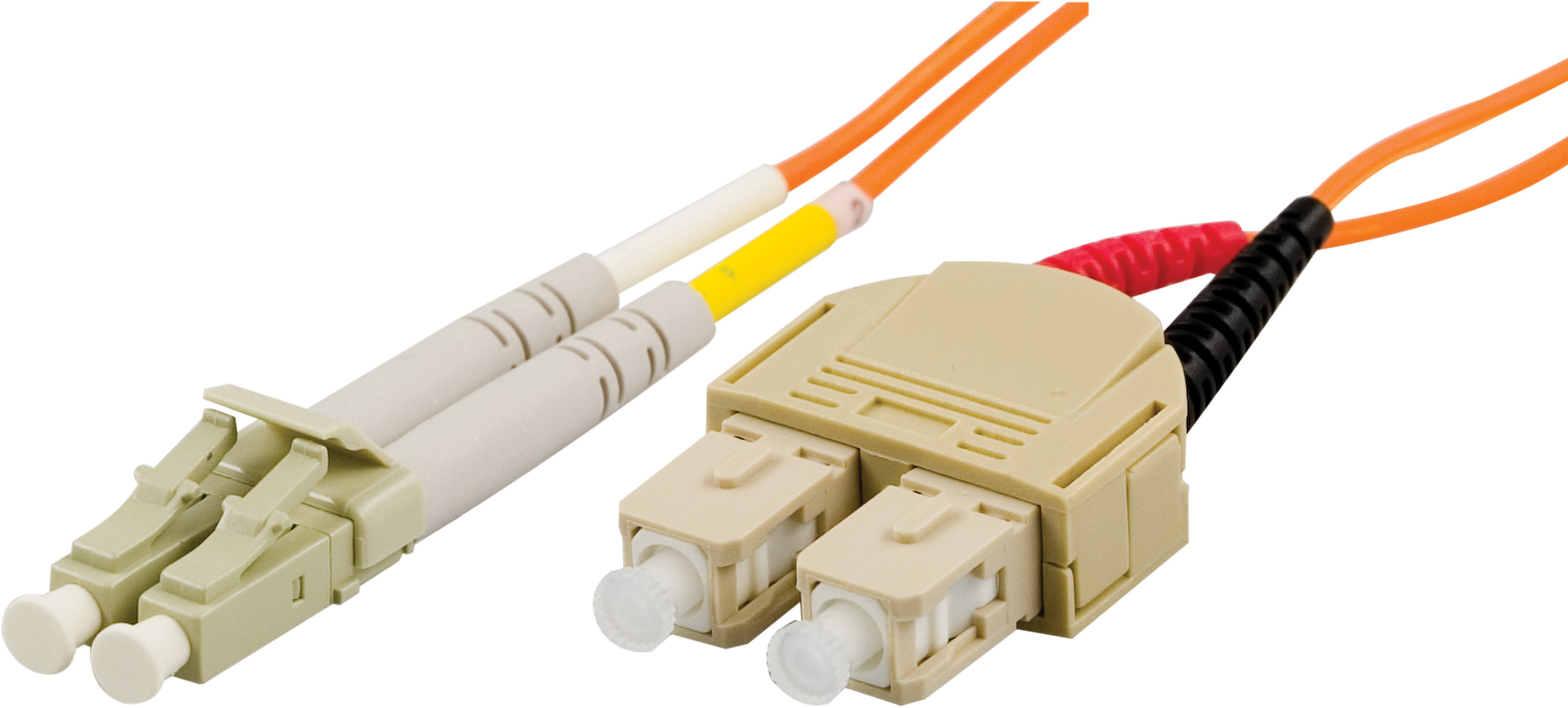

Fiber cable DELTACO OM1, LC - SC, duplex, UPC, 62,5/125, 3m, orange / LCSC-3M

DELTACO OM1 fiber cable, LC - SC, duplex, UPC, 62.5 / 125, 3m, orange

High-quality duplex cable where each duct is 2mm in diameter with LSZH sheath. The connectors are UPC-ground and have ceramic coupling sleeves.

OM1 has a bandwidth of 200MHz / km with a transmission speed of 10Gb / s up to 33m.

• Maximum 0.3dB insertion loss.

• More than 35dB contact reflection attenuation.

• OM1 Multimode 850nm / 1300nm.

• 2mm diameter per channel.

• 62.5 / 125µm fiber core.

• Chlorine-free LSZH jacket.

• Beige plastic contact covers with strain relief.

• Ultra Physical Contact-ground contacts.

• Individually tested and quality assured.

• Compatible with IEC61753-022-2.

Contact (other end)    2 x SC mode (multi-mode) - male
Connector    2 x LC multi-position - male
Length    3 m
Technique    Fiber optic
Type of fiber optics    Multimode
Type of network cable    Network cable
