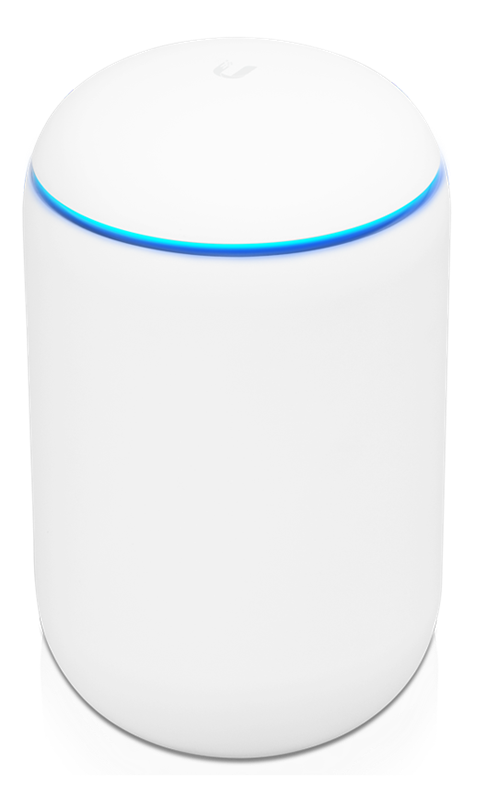

Ubiquiti UniFi Dream Machine UBI-UDM

Ubiquiti UniFi Dream Machine router, vit

UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to companies and ordinary homes. UDM includes everything you need for a small-scale wired network or WiFi network. It is simple while offering all the benefits of UniFi.

Computing power from a 1.7 GHz quad-core processor, UDM combines multiple functions into a single device

• Managed 4-Port Gigabit Switch
• Advanced security gateway with IDS / IPS and DPI
• Computing power from a 1.7 GHz Quad-Core Processor
• High-performance dual-band 802.11ac 4x4 Wave 2 technology
• UniFi network controllers with intuitive user interface
• Scalable through additional UniFi devices connected to LAN

Dimensions: (WxDxH) 110x110x182.4 mm

Weight: 1050 g

Connection technology    Wireless, wired
Number of antennas    1
Antenna    Built
Width    11 cm
Data link protocol    Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Depth    11 cm
Energy consumption during operation    26 watts
Flash memory    16 GB
Frequency band    2.4 GHz / 5GHz
Features    Firewall Protection, VLAN Support, Intrusion Detection System (IDS), Intrusion Detection System (IDS), Depth Inspection, Wi-Fi Multimedia Support, Quality of Service (QoS), Reset Button, VPN Server, Beam Forming Technology, 4x4 MU-MIMO Technology, Advanced QoS, Guest Isolation
Interface    LAN: 4 x 10Base-T / 100Base-TX / 1000Base-T - RJ-45
Interface    WAN: 1 x 10Base-T / 100Base-TX / 1000Base-T - RJ-45
Height    18.24 cm
Capacity    BSSID: is by radio: 8
Encryption algorithm    AES, TKIP, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP
Humidity during operation    5 - 95% (non-condensing)
Maximum temperature during operation    45 ° C
My operating temperature    -10 ° C
Model    Desktop model
Power supply    Internal power supply
Mains voltage    AC 120/230 V
Performance    Intrusion Detection Capacity: 1 Gbps
Performance    Intrusion Detection Capacity: 1 Gbps
Processor    1 x ARM Cortex-A57 1.7 GHz
FRAME    2 GB DDR SDRAM
Standards followed    IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.11ac Wave 2, IC, FCC
Type of device    Wireless router - 4-port switch (built-in)
Verification method    Basic Service Set Identifier (BSSID)
Weight    1.05 kg
