- Description
-
Details
Product description

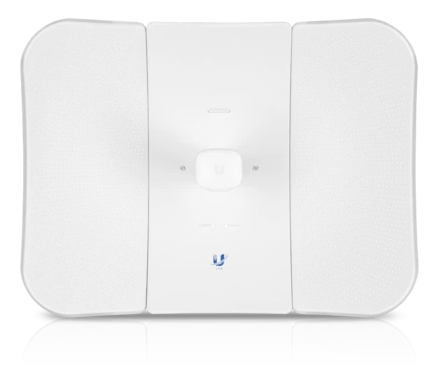

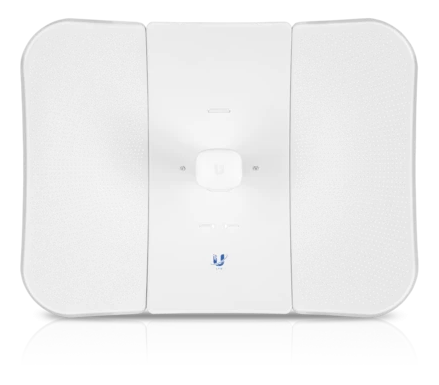

Ubiquiti LTU LR, white
5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.
Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).
• PtMP CPE
• 1024 QAM
• 10/20/30/40/50 MHz channel bandwidth
• Central configuration management from AP side
• Frequency split
• Auto power adjustments
• Router mode support
• Range up to 30km
Dimensions (WxDxH): 512.5 x 385.75 x 258.3 mmWeight: 1.360 kg
Specification
Connection technology Wireless Antenna Built Width 51.25 cm Data link protocol LTU Depth 25.83 cm Energy consumption during operation 8.5 watts Form factor External Frequency band 5 GHz Features UV-stabilized housing, Point-to-multipoint (PtMP) linking mode, 24KV ESD protection (airspace discharge), 24KV ESD protection (contact discharge) Gain level 26 dBi Interface 1 x 1000Base-T (PoE) - RJ-45 Height 38,575 cm Included accessories Pile mounting Line coding format 1024 QAM Humidity during operation 5 - 95% (non-condensing) Maximum range in open space 30 km Maximum temperature during operation 60 ° C Included Olympics AirOS LTU My operating temperature -40 ° C Power supply Power supply Robust design Outside Standards followed IC, ICES-003 Class A, FCC, FCC Part 15 A, NMB-3 Class A PoE (Power Over Ethernet) support PoE Type of device Wireless bridge Weight 1.36 kg - Additional Information
-
Additional Information
Length, cm 0 Width, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Manufacturer UBIQUITI Manufacturer's code LTU-LR Country of manufacture EAN code 810010070937 User's manual Download Gross weight, kg 1.7 Net weight, kg 1.6 Package Height, cm 0.0000 Package Width, cm 0.0000 Package Depth, cm 0.0000 Package volume, m3 0 Comment for B2B customer #N/D - Reviews
-
